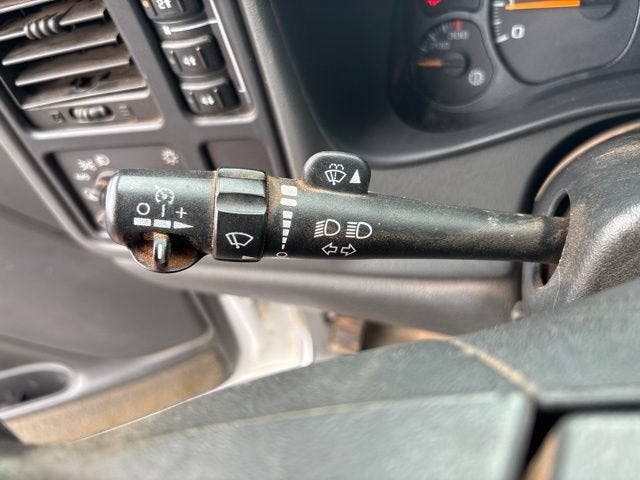

• Cruise control, electronic with set and resume speed, includes telltale in instrument panel cluster
• Defogger, rear-window, electric
• Door locks, power
• Keyless entry, remote, includes 2 transmitters, panic button and content theft alarm
• Mirror, inside rearview, electrochromic (light-sensitive auto dimming), 8-point compass and outside temperature indicator

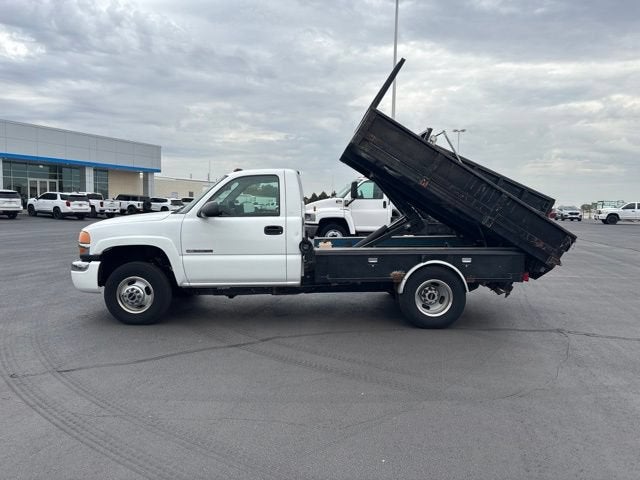

• Body, Chassis Cab
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, ladder-type
• Steering, power
• Tire carrier, outside spare, winch-type mounted under frame at rear

• Brakes, 4-wheel antilock, 4-wheel disc

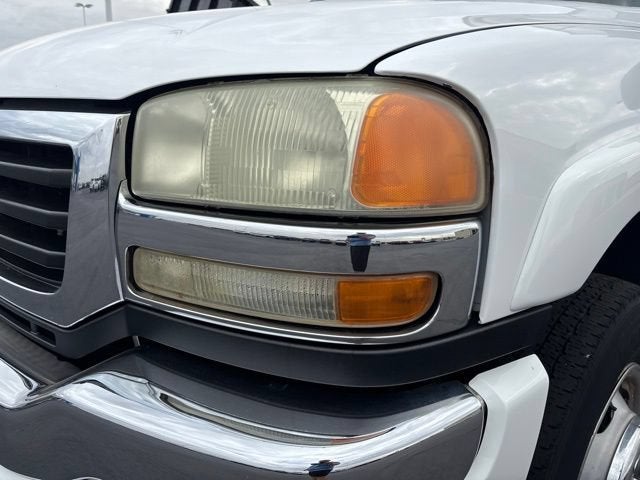

• Daytime running lamps, includes automatic exterior lamp control

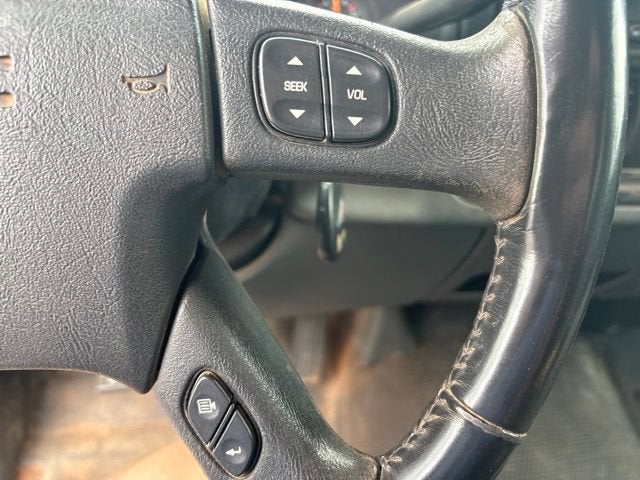

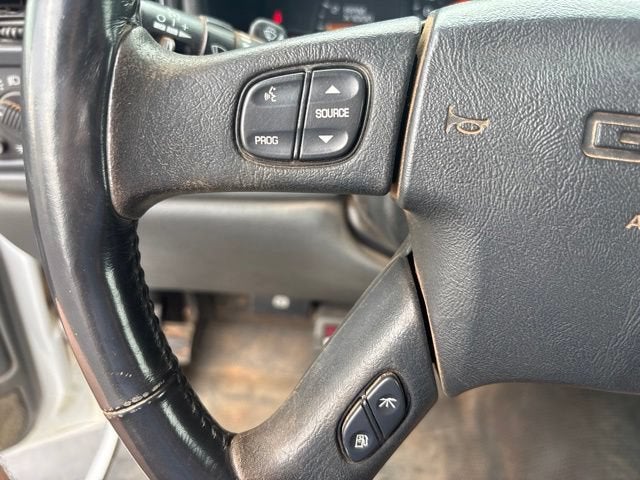

SOUND SYSTEM FEATURE, STEERING WHEEL MOUNTED RADIO CONTROLS, RADIO AND DRIVER INFORMATION CENTER (DIC).

• Provides access to enhanced Driver Information Center features and information

ENGINE, VORTEC 6000 V8 SFI

• (300 HP [223.8 kW] @ 4400 rpm
• 360 lb.-ft. [486.6 N-m] @ 4000 rpm) (STD)

TIRE, SPARE LT215/85R16D, ON-/OFF-ROAD, BLACKWALL

• located at rear underbody of vehicle

TRANSFER CASE, ELECTRONIC SHIFT

• includes push-button controls

REAR AXLE, 4.10 RATIO

• (Refer to Engine/Axle chart for availability.) (STD)

FLOOR COVERING, GRAPHITE-COLORED RUBBERIZED VINYL

• *Affects Color Availability*

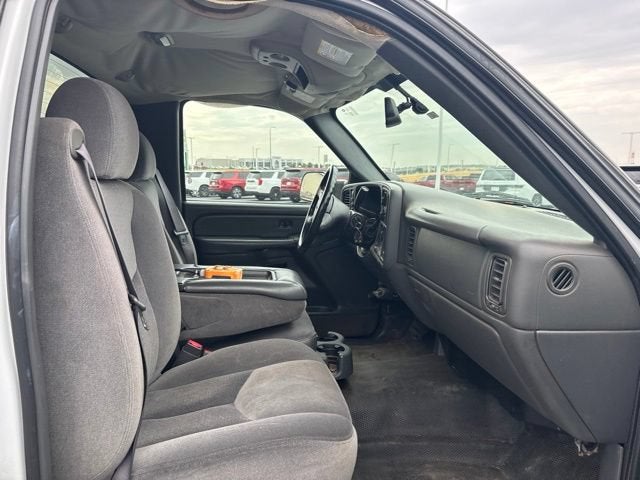

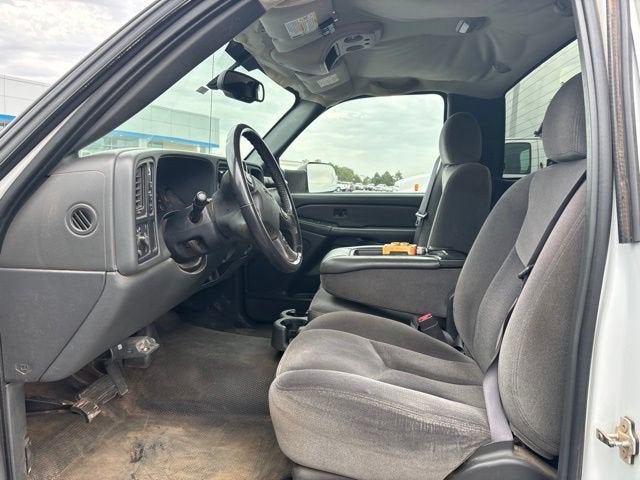

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND PASSENGER MANUAL RECLINING

• center fold-down armrest with storage
• adjustable outboard head restraints and storage pockets on Extended Cab Models (STD)

SEAT TRIM, CUSTOM CLOTH

• (STD)

BODY, CHASSIS CAB

• (STD)

GVWR, 12,000 LBS. (5443 kg)

• (STD)

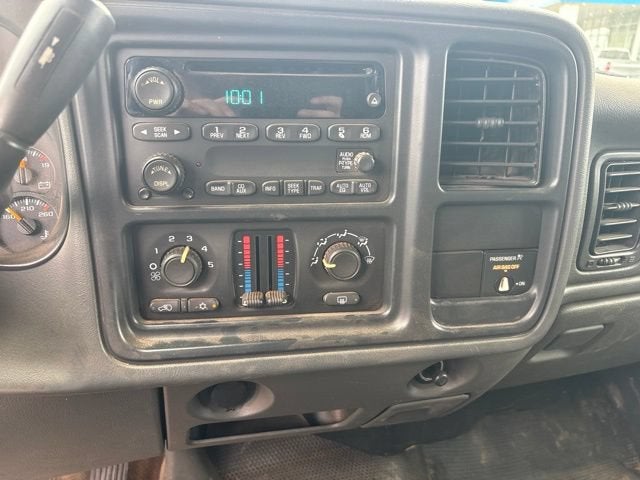

SOUND SYSTEM, ETR AM/FM STEREO WITH CD PLAYER

• includes seek-and-scan
• digital clock
• auto-tone control
• speed-compensated volume and Radio Data System (RDS) (STD)

SLE PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

MIRRORS, OUTSIDE REARVIEW, POWER, HEATED, CAMPER-STYLE

• includes power extending arms and turn signal in glass

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• (STD)

PAINT, SOLID

• (STD)

• SOUND SYSTEM FEATURE STEERING WHEEL MOUNTED RADIO CONTROLS RADIO AND DRIVER INFORMATION CENTER (DIC). Provides access to enhanced Driver Information Center features and information
• ENGINE VORTEC 6000 V8 SFI (300 HP [223.8 kW] @ 4400 rpm 360 lb.-ft. [486.6 N-m] @ 4000 rpm) (STD)
• TIRE SPARE LT215/85R16D ON-/OFF-ROAD BLACKWALL located at rear underbody of vehicle
• TRANSFER CASE ELECTRONIC SHIFT includes push-button controls
• TRANSMISSION 4-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED WITH OVERDRIVE TOW/HAUL MODE AND (KNP) COOLING EXTERNAL TRANSMISSION OIL COOLER
• REAR AXLE 4.10 RATIO (Refer to Engine/Axle chart for availability.) (STD)
• FLOOR COVERING GRAPHITE-COLORED RUBBERIZED VINYL *Affects Color Availability*
• TIRES LT215/85R16D ON-/OFF-ROAD BLACKWALL
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND PASSENGER MANUAL RECLINING center fold-down armrest with storage adjustable outboard head restraints and storage pockets on Extended Cab Models (STD)
• SEAT TRIM CUSTOM CLOTH (STD)
• BODY CHASSIS CAB (STD)
• GVWR 12 000 LBS. (5443 kg) (STD)
• LICENSE PLATE BRACKET FRONT
• SOUND SYSTEM ETR AM/FM STEREO WITH CD PLAYER includes seek-and-scan digital clock auto-tone control speed-compensated volume and Radio Data System (RDS) (STD)
• SLE PREFERRED EQUIPMENT GROUP includes Standard Equipment
• COOLING EXTERNAL TRANSMISSION OIL COOLER AUXILIARY HEAVY-DUTY AIR-TO-OIL
• MIRRORS OUTSIDE REARVIEW POWER HEATED CAMPER-STYLE includes power extending arms and turn signal in glass
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY (STD)
• DIFFERENTIAL LOCKING HEAVY-DUTY REAR
• PAINT SOLID (STD)
• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Steel Wheels
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Automatic Headlights
• Daytime Running Lights
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• Cloth Seats
• Split Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• Immobilizer
• Security System
• Keyless Entry
• Power Door Locks
• Multi-Zone A/C
• A/C
• Rear Defrost
• AM/FM Stereo
• CD Player
• Power Outlet
• Auto-Dimming Rearview Mirror
• Front Reading Lamps
• Passenger Vanity Mirror
• Front Reading Lamps
• ABS
• 4-Wheel Disc Brakes
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Daytime Running Lights
• Automatic Headlights

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 12.62
• Total Cooling System Capacity (qts): 15.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4670
• Gross Axle Wt Rating - Rear (lbs): 8600
• Curb Weight - Front (lbs): 3167
• Curb Weight - Rear (lbs): 2337
• Gross Vehicle Weight Rating Cap (lbs): 12,000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): N/A
• Dead Weight Hitch - Max Tongue Wt. (lbs): N/A
• Wt Distributing Hitch - Max Trailer Wt. (lbs): N/A
• Wt Distributing Hitch - Max Tongue Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Indep Torsion Bar
• Suspension Type - Rear: 3-Stage Spring
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Front: Independent Driving
• Axle Type - Rear: Full Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.18
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: XYL
• Front Tire Order Code: XYK
• Rear Tire Order Code: XYL
• Rear Tire Order Code: XYK
• Spare Tire Order Code: ZYL

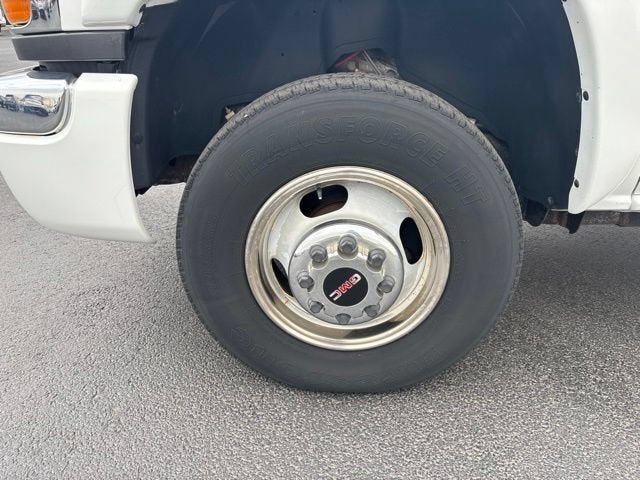

• Front Tire Size: LT215/85R16D
• Rear Tire Size: LT215/85R16D
• Spare Tire Size: LT215/85R16D
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 2150
• Spare Tire Capacity (lbs): 2150
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24.0
• Steering Ratio (:1), At Lock: 3.14
• Turning Diameter - Curb to Curb (ft): 44.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 27
• Aux Fuel Tank Capacity, Approx (gal): 23
• Fuel Tank Location: Inboard LH Frame
• Aux Fuel Tank Location: Rear
• Exterior Dimensions
• Wheelbase (in): 137.0
• Length, Overall w/o rear bumper (in): 225.0
• Width, Max w/o mirrors (in): 86.0
• Height, Overall (in): 76.0
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 51.0
• Front Bumper to Back of Cab (in): 113.6
• Cab to Axle (in): 60.4
• Cab to End of Frame (in): 111.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.7
• Front Hip Room (in): 61.5
• Summary

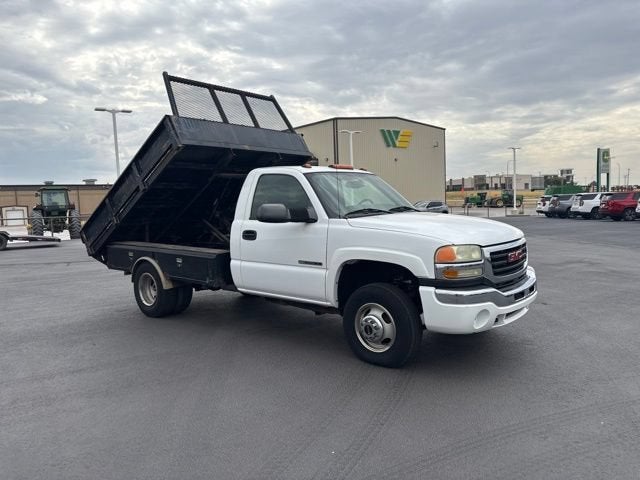

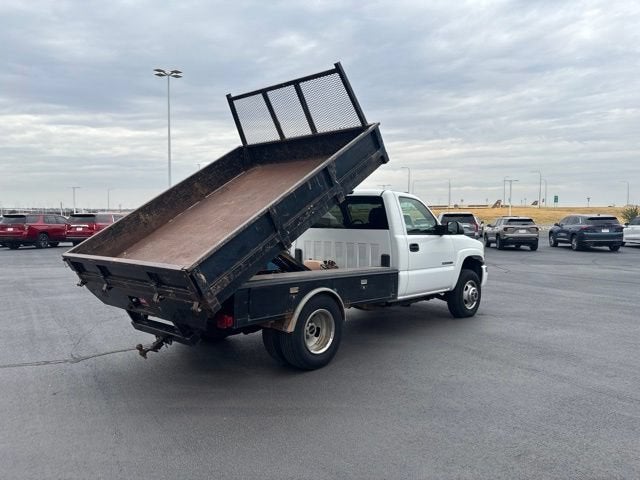

• Vehicle Name: GMC Sierra 3500
• Body Style: Reg Cab 137.0" Wheelbase
• Body Code: ZW9
